Cloud Render API

💼 This API is available on the Enterprise plan. Contact us via the pricing page to get access.

What is the Cloud Render API?​

The Ydesign SDK can generate images on the client via store.toDataURL() / store.toBlob(). But some scenarios are painful (or impossible) to run in the browser:

  • Batch rendering: produce 1000 variations (marketing assets, product shots, dynamic posters)
  • Backend jobs: scheduled tasks, webhook handlers, queue consumers
  • High-fidelity export: print-level resolutions and oversized canvases that exhaust browser memory
  • Headless environments: offload rendering from the user's device to reduce client cost

You could run fabric.js on your own Node server, but you'd have to handle: canvas polyfills for Node, custom font loading, cross-origin image fetching, Ydesign-specific extension fields (__strokeOptions) and so on.

The Ydesign Cloud Render API handles all of that. Send us a fabric JSON (exported via store.toJSON()) and we return a rendered image URL. The stack is fabric.js + Node.js, so output is pixel-identical to the client.

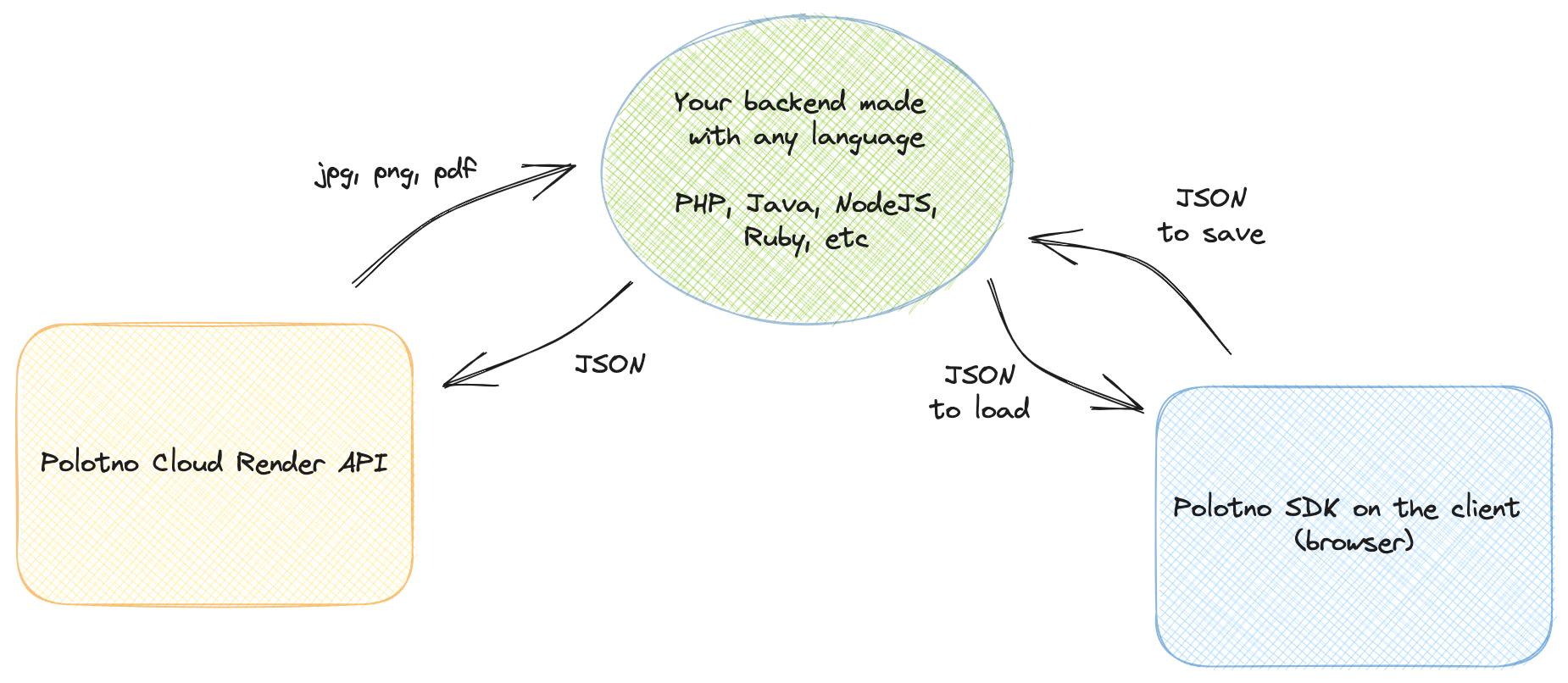

Cloud Render flow

Overview​

  • Endpoint: POST https://api.ydesign.com/api/render/image
  • Content-Type: application/json
  • Auth: Authorization: Bearer YOUR_API_KEY

Minimal example​

const req = await fetch('https://api.ydesign.com/api/render/image', {
  method: 'POST',
  headers: {
    'Content-Type': 'application/json',
    Authorization: 'Bearer YOUR_API_KEY',
  },
  body: JSON.stringify({
    // 1) fabric JSON from store.toJSON()
    json: store.toJSON(),
    // 2) export options
    format: 'jpeg',
    quality: 1,
    multiplier: 1,
    // 3) custom fonts used in the design
    fonts: [
      {
        fontFamily: 'AlibabaPuHuiTi_2_115_Black',
        url: 'https://your-cdn.com/fonts/AlibabaPuHuiTi_2_115_Black.ttf',
      },
    ],
  }),
});

const { url } = await req.json();

document.getElementById('result').src = url;

Demo​

设计稿 JSON（store.toJSON() 的结果）：

字体列表（非系统字体必填）：

渲染选项：

Format:
Quality:
1
Multiplier:
1× （输出 1080×1080）

Request body​

{
  "json": {
    /* fabric.js design JSON */
  },
  "format": "jpeg",
  "quality": 1,
  "multiplier": 1,
  "fonts": [
    {
      "fontFamily": "...",
      "url": "..."
    }
  ]
}

json · design data (required)​

A fabric.js v6 JSON, typically from store.toJSON(). Shape:

{
  "version": "6.9.1",
  "width": 1920,
  "height": 1080,
  "thumb": "https://...",
  "objects": [ /* every canvas element */ ],
  "clipPath": { /* workarea clip rect */ }
}

Top-level fields​

FieldTypeDescription
versionstringfabric.js version (currently 6.9.1); the server parses accordingly
width / heightnumberCanvas dimensions in pixels
thumbstringOptional preview URL (cosmetic; doesn't affect rendering)
objectsarrayCanvas elements in z-index order
clipPathobjectWorkarea clip rectangle (id: 'workarea') — defines the output region

objects items​

Every object is a native fabric object. The three common types:

Rect (usually the workarea background):

{
  "id": "workarea",
  "type": "Rect",
  "name": "workarea",
  "left": 0,
  "top": 0,
  "width": 1920,
  "height": 1080,
  "fill": "#fff",
  "selectable": false,
  "lockMovementX": true,
  "lockMovementY": true
}

Image:

{
  "id": "633b5509-...",
  "type": "Image",
  "src": "https://your-cdn.com/images/background.png",
  "left": -3.16,
  "top": 0,
  "width": 1920,
  "height": 1080,
  "scaleX": 1,
  "scaleY": 1,
  "crossOrigin": "anonymous",
  "__strokeOptions": {
    "color": "rgba(0, 0, 0, 1)",
    "width": 6,
    "enabled": true,
    "alphaThreshold": 10
  }
}

💡 __strokeOptions is Ydesign's "smart image outline" extension. The server recognizes and renders it automatically (same behavior as the client's ImageStrokeHandler) — no extra flags needed.

Textbox:

{
  "id": "911d02d8-...",
  "type": "Textbox",
  "text": "Four Red Zones",
  "left": 144,
  "top": 129,
  "width": 350.94,
  "fontSize": 86.43,
  "fontFamily": "AlibabaPuHuiTi_2_115_Black",
  "fontWeight": "normal",
  "fill": "rgba(0, 0, 0, 1)",
  "textAlign": "center",
  "charSpacing": 20,
  "lineHeight": 2.16,
  "stroke": "red",
  "strokeWidth": 25,
  "paintFirst": "stroke",
  "shadow": {
    "blur": 1,
    "color": "rgba(0, 0, 0, 1)",
    "offsetX": 15.74,
    "offsetY": 18.11
  }
}

⚠️ If text uses a non-system font, the corresponding URL must be declared in the top-level fonts array — otherwise the server falls back to system defaults and rendering drifts.

format · output format​

ValueDescription
jpeg (default)Smallest, no transparency
pngPreserves transparency, lossless
webpSmaller than PNG, supports alpha

quality · image quality​

Number in 0 - 1, defaults to 1. Only applies to jpeg / webp.

{ "format": "jpeg", "quality": 0.85 }

multiplier · resolution multiplier​

For high-resolution output. multiplier: 2 doubles both dimensions.

ScenarioRecommended
Web / social previews1
Retina / high-res2
Print-grade (300 dpi)3 – 4

📏 A 1920×1080 canvas with multiplier: 2 outputs 3840×2160. Mind the bandwidth/storage cost.

fonts · custom fonts​

The server can't magically know which fonts are installed on your machine. Every non-system font used in the design must be declared here with its URL:

{
  "fonts": [
    {
      "fontFamily": "AlibabaPuHuiTi_2_115_Black",
      "url": "https://your-cdn.com/fonts/AlibabaPuHuiTi_2_115_Black.ttf"
    },
    {
      "fontFamily": "Noto Sans SC",
      "url": "https://your-cdn.com/fonts/NotoSansSC-Regular.woff2"
    }
  ]
}
FieldTypeDescription
fontFamilystringFont name — must exactly match objects[].fontFamily (case & underscores matter)
urlstringFont file URL. Supports .ttf / .otf / .woff / .woff2; must be HTTPS + CORS

Before rendering, the server concurrently downloads all fonts and registers them with Node fabric. Font loading has a 10-second timeout; on timeout it falls back to a system font and sets X-Ydesign-Font-Missing in the response headers.

Response​

Success​

{
  "success": true,
  "url": "https://pub-xxx.r2.dev/renders/2026-04-01/xxxx.jpeg",
  "width": 1920,
  "height": 1080,
  "size": 284591,
  "duration": 1243
}
FieldDescription
urlRendered image URL
width / heightActual output size (= canvas size × multiplier)
sizeFile size in bytes
durationServer render time in milliseconds

🕒 The generated file is retained for 24 hours. After that access is not guaranteed. If you need longer retention, download and re-upload to your own storage.

Error​

{
  "success": false,
  "code": "FONT_LOAD_FAILED",
  "message": "Failed to load font: AlibabaPuHuiTi_2_115_Black"
}

Common error codes:

codeMeaningWhere to look
INVALID_JSONjson missing or malformedVerify the store.toJSON() call
FONT_LOAD_FAILEDFont download failedCheck the url and CORS headers
IMAGE_LOAD_FAILEDImage asset download failedCheck objects[].src accessibility
PAYLOAD_TOO_LARGERequest body > 5 MBAvoid base64 images; use remote URLs
UNAUTHORIZEDInvalid API key / quota exhaustedCheck the console
INTERNAL_ERRORServer errorRetry; if persistent, contact support

Limits & recommendations​

Payload size​

A single request must be ≤ 5 MB. If your design has base64 images, you'll hit this quickly. Upload images to an OSS / CDN first and store short URLs in the JSON (setUploadFunc helps automate this).

CORS for images and fonts​

The server fetches every remote asset. Make sure:

  • Image URLs return Access-Control-Allow-Origin: *
  • Font URLs return Access-Control-Allow-Origin: *
  • Don't use login-gated or time-bound tokenized URLs

Concurrency & rate limits​

Enterprise plan defaults:

  • Concurrency: 10 QPS
  • Per-render timeout: 30 seconds
  • Monthly quota: depends on tier (Basic / Pro / Custom)

Exceeding the limit returns 429 Too Many Requests — implement client-side backoff.

Typical scenarios​

Batch-generate marketing assets with dynamic copy​

import fs from 'node:fs/promises';

const template = JSON.parse(await fs.readFile('./template.json', 'utf-8'));
const candidates = ['Lunar New Year Deals', '6.18 Mega Sale', 'Singles Day Blitz'];

for (const title of candidates) {
  // Same template, just swap the 4th element's (title) text
  const cloned = structuredClone(template);
  cloned.objects[3].text = title;

  const res = await fetch('https://api.ydesign.com/api/render/image', {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      Authorization: 'Bearer YOUR_API_KEY',
    },
    body: JSON.stringify({
      json: cloned,
      format: 'jpeg',
      quality: 0.9,
      multiplier: 2,
      fonts: [
        {
          fontFamily: 'AlibabaPuHuiTi_2_115_Black',
          url: 'https://your-cdn.com/fonts/AlibabaPuHuiTi_2_115_Black.ttf',
        },
      ],
    }),
  });

  const { url } = await res.json();
  console.log(`${title} →`, url);
}

Node.js backend: direct re-upload to S3​

import AWS from '@aws-sdk/client-s3';

const res = await fetch('https://api.ydesign.com/api/render/image', {
  method: 'POST',
  headers: {
    'Content-Type': 'application/json',
    Authorization: 'Bearer YOUR_API_KEY',
  },
  body: JSON.stringify({ json, format: 'png', multiplier: 2, fonts }),
});

const { url } = await res.json();

// The returned URL expires in 24h — download & persist immediately
const imageRes = await fetch(url);
const buffer = Buffer.from(await imageRes.arrayBuffer());

const s3 = new AWS.S3Client({ region: 'us-east-1' });
await s3.send(
  new AWS.PutObjectCommand({
    Bucket: 'my-design-renders',
    Key: `designs/${Date.now()}.png`,
    Body: buffer,
    ContentType: 'image/png',
  }),
);

Client "Export HD" button​

import { Button, message } from 'antd';
import { observer } from 'mobx-react-lite';

export const ExportHDButton = observer(({ store }) => {
  const handleExport = async () => {
    const key = 'export';
    message.loading({ content: 'Rendering in the cloud…', key });

    try {
      const res = await fetch('https://api.ydesign.com/api/render/image', {
        method: 'POST',
        headers: {
          'Content-Type': 'application/json',
          Authorization: `Bearer ${import.meta.env.VITE_YDESIGN_KEY}`,
        },
        body: JSON.stringify({
          json: store.toJSON(),
          format: 'png',
          multiplier: 4, // 4× ultra HD
          fonts: store.fonts.map(f => ({
            fontFamily: f.fontFamily,
            url: f.url,
          })),
        }),
      });

      const { url } = await res.json();
      window.open(url, '_blank');
      message.success({ content: 'Done', key });
    } catch (e) {
      message.error({ content: 'Render failed, please retry', key });
    }
  };

  return (
    <Button type="primary" onClick={handleExport}>
      Export HD (4×)
    </Button>
  );
});

Cloud render vs client export​

AspectClient store.toDataURL()Cloud /api/render/image
Runs onUser's browserYdesign server
FontsMust already be loaded by the userMust be declared in fonts array
multiplier capBrowser memory (typically ≤ 4)Up to 8×
LatencyInstant1 – 10s (depends on assets + fonts)
Best forPreview / interactive exportBatch / HD / backend jobs
CostFreeCounts against your enterprise quota
